[TORAIZ SP-16] Factory Sample and Demo Project Installation Manual

Professional Sampler TORAIZ SP-16

Introduction

Thank you and congratulations on your TORAIZ SP-16 purchase.

This document is a guide for customers to update or restore the factory demo projects and/or sample packs provided by Loopmasters (loopmasters.com). This document will guide you through the process of re-installing and repairing the necessary files.

Decompressing the Downloaded File

Decompress the file and the following folders will appear.

TORAIZ SP-16 Factory Samples.zip: LOOPMASTERS SAMPLE PACK

TORAIZ SP-16 Factory Projects.zip: TORAIZ SP-16 Factory Projects.

Connecting to a Computer

Connect the unit to a computer with a USB cable. Open the UTILITY menu and enable USB MASS STORAGE MODE. You will be able to access the internal flash memory from your computer.

• When disconnecting, follow the instructions on the popup and safely remove the device from your computer.
• DO NOT disconnect the unit while it is connected with the computer. It may lose internal utility data or corrupt data.

Installing the Factory Samples

1. Copy the decompressed LOOPMASTERS SAMPLE PACK to the unit’s directory
   /PIONEER DJ SAMPLER/Samples
   If the “Samples” folder does not exist, please create the required folders using your computer’s folder creation feature.


   1.

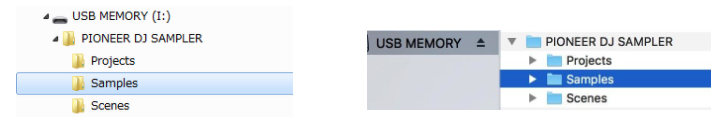

                   ＜Windows OS example＞                                ＜Mac OS example＞

2. When copying is done, disconnect safely from your computer and exit USB MASS STORAGE MODE.


3. Navigate to HOME > TRACK MENU > BROWSE and set the FILTER TYPE to FOLDER. Open the folder Samples [INTERNAL] and check if LOOPMASTERS SAMPLE PACK has been copied successfully.
   • When the unit’s internal flash memory is full the samples might not transfer correctly. Relocate or backup other samples to your computer in order to free up memory.

Installing the Demo Projects

1. Open the decompressed folder TORAIZ SP-16 Factory Projects and confirm the following files exists.
   Demo 01 House Techno EDM.prj
   Demo 02 Dubstep Trap.prj
   Demo 03 Hip Hop.prj
   Demo 04 Drum n Bass.prj
   Demo 05 Ambient Chill.prj
   Copy the above files to the unit’s directory below.
   /PIONEER DJ SAMPLER/Projects

   *If these project files already exist in the /PIONEER DJ SAMPLER/Projects folder, please overwrite the existing project files with the new ones.

   *If the “Projects” folder does not exist, please create the required folders using your computer’s folder creation feature.

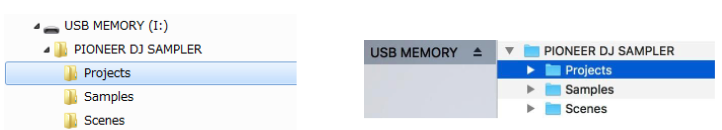

   ＜Windows OS example＞                                   ＜Mac OS example＞


2. When copying is done, disconnect safely from your computer and exit USB MASS STORAGE MODE.
3. Navigate to HOME > PROJECT and select OPEN. Check if the demo projects are available.
4. Please confirm that you can LOAD a demo project and play it.

The demo projects might not playback correctly if the LOOPMASTERS SAMPLE PACK folder is not located in the

/PIONEER DJ SAMPLER/Samples directory.
